- Country
- France
- Manufacturer / Brand
- Lafayette-France (La Fayette), Comptoir du Sud-Ouest; Paris, Bordeaux
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 302204
Dépliant Lafayette
Dépliant Lafayette
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 24 cm = 9.4 inch
- Material
- Wooden case
- from Radiomuseum.org

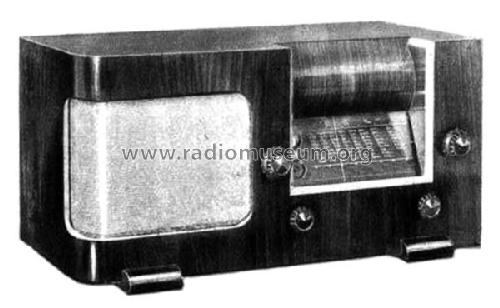

- Model: Colorado 886A - Lafayette-France La Fayette,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 700 x 380 x 375 mm / 27.6 x 15 x 14.8 inch
- Notes
-
3 gammes d'ondes : OC de 19 à 50 m, PO de 195 à 570 m et GO de 1000 à 2000 m. Sélectivité variable. Étage BF en push-pull. Prises HP supplémentaire et pick-up.
Ébénisterie en noyer ou palissandre.
Supplément 25 périodes, 50 Fr.
- Price in first year of sale
- 2,960.00 FRF
