Grand Cadre 12 coins
Lagadec, P.; Paris
- Country
- France
- Manufacturer / Brand
- Lagadec, P.; Paris
- Year
- 1923
- Category
- Antenna (Aerial) or Coupler
- Radiomuseum.org ID
- 299803
La Nature No 2562
La Nature No 2562 p. 147
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Grand Cadre 12 coins - Lagadec, P.; Paris
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 2500 x 2500 x 800 mm / 98.4 x 98.4 x 31.5 inch
- Notes
-

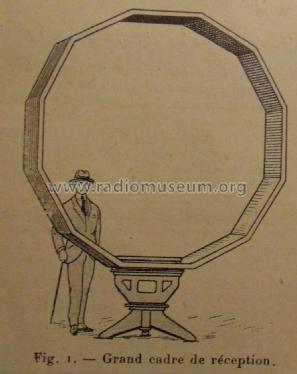

Grand cadre à 12 côtés, pivotant sur son support. Enroulement de 40 spires de fil de 0,8 mm, divisé en 3 sections 10, 20 et 40 spires.
Dimensions sans support.
- Mentioned in
- La Nature, No. 2562, 12.05.1923
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
