Générateur HF425
LAMRE; Orleans
- Country
- France
- Manufacturer / Brand
- LAMRE; Orleans
- Year
- 1960 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 263794
- Number of Tubes
- 1
- Valves / Tubes
- EF89
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

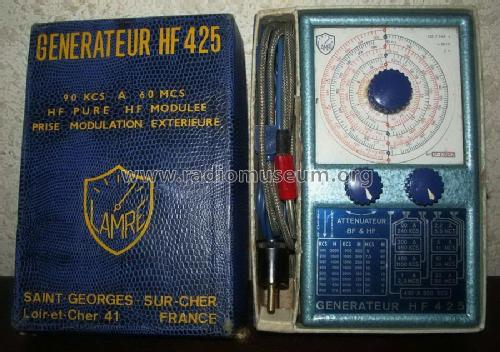

- Model: Générateur HF425 - LAMRE; Orleans
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 91 x 160 x 50 mm / 3.6 x 6.3 x 2 inch
- Notes
-
Hétérodyne miniature à une seule lampe.
90kHz à 60MHz en 4 gammes + 1 gamme 400 à 500khz.
HF pure ou modulée à 50hz, modulation externe par jack 3,5mm.
Chassis isolé du secteur par petit transfo d'alimentation, haute tension de 45V environ.
Succède au Vari Pocket qui lui est trés similaire.
- Net weight (2.2 lb = 1 kg)
- 0.9 kg / 1 lb 15.7 oz (1.982 lb)
- Price in first year of sale
- 211.00 FF
- Source of data
- Le Haut-Parleur
- Author
- Model page created by Olivier Palix. See "Data change" for further contributors.
