• Country
• France

• Manufacturer / Brand
• Lancat; Bagnolet (Seine)

• Year
• 1931 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 297883

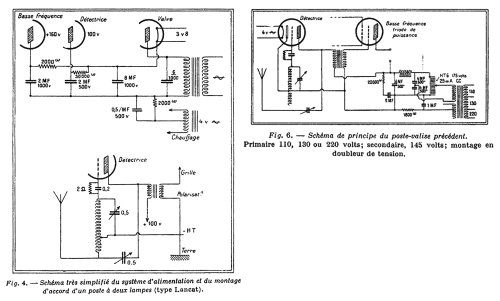

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Poste-Valise - Lancat; Bagnolet Seine

• Shape
• Tablemodel, with any shape - general.

• Notes

• 2 gammes d'ondes : PO de 190 à 600 m, GO de 600 à 2000 m.

  Voir aussi modèle similaire Radio-Valise.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Mentioned in
• La Nature, 1931 2e, p.207
