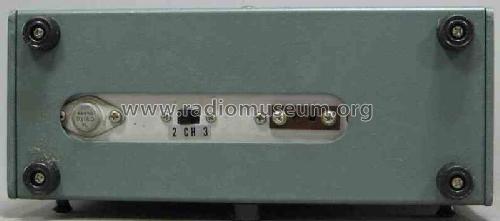

Color Bar Pattern Generator LCG-388

Leader Electronics Corp.; Yokohama

Data
Forum
Pictures
Collections

  • Year
  • 1978 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 131611

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Color Bar Pattern Generator LCG-388 - Leader Electronics Corp.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 159 x 55 x 200 mm / 6.3 x 2.2 x 7.9 inch
  • Notes
  • The LCG388 Color Bar Pattern Generator provides a unique binary frequency divider which acts as a minicomputer and provides 15 patterns in RF and video frequencies, including the 10 gated color bars, 3 color bars, single dot and cross and absolutely square crosshatch to check and adjust for convergence, linearity and pin cushion effects.
  • Net weight (2.2 lb = 1 kg)
  • 1.3 kg / 2 lb 13.8 oz (2.863 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
