• Country
• France

• Manufacturer / Brand
• Lemouzy; Paris

• Year
• 1949–1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68468

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 GZ40

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

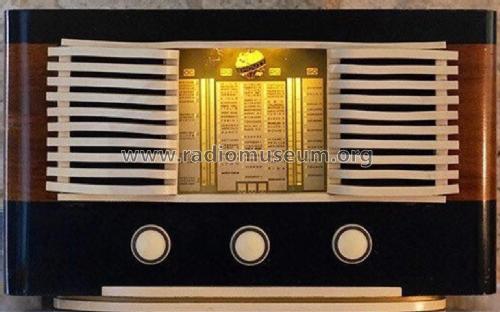

• Model: 514 - Lemouzy; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 270 x 230 mm / 17.7 x 10.6 x 9.1 inch

• Notes

• 3 gammes d'ondes de 16 à 2000 m: OC de 16.5 à 51 m, PO de 185 à 577 m, GO de 1000 à 2000 m.

  Coffret verni.

  Voir aussi modèle 514BE avec bande étalée sur OC.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 14,950.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• -- Original prospect or advert (Catalogue Mai 1949, Avr. 1950)

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur (1951)
