514BE
Lemouzy; Paris
- Country
- France
- Manufacturer / Brand
- Lemouzy; Paris
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68469
ebay.fr #181868657229 seller beteapoil
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 514BE - Lemouzy; Paris
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 450 x 270 x 230 mm / 17.7 x 10.6 x 9.1 inch
- Notes
-
4 gammes d'ondes de 16 à 2000 m: OC de 16.5 à 48 m, BE (bande étalée) de 46.1 à 51 m, PO de 185 à 577 m, GO de 1000 à 2000 m. HP diamètre 130 mm (170 mm?).
Coffret verni.
Voir aussi modèle 514 sans bande étalée.
- Price in first year of sale
- 19,975.00 FRF
- External source of data
- Serge Laffont/Martin Renoth
- Literature/Schematics (1)

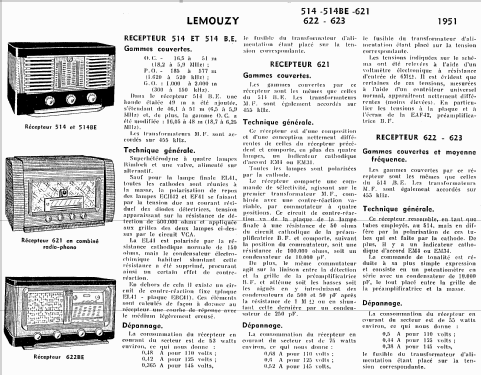

- Radio Constructeur et Dépanneur (1951)
