610 tous courants
Lemouzy; Paris
- Country
- France
- Manufacturer / Brand
- Lemouzy; Paris
- Year
- 1939 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 246095
- Number of Tubes
- 6
- Valves / Tubes
- 6E8 6K7 6H8 25L6 unknown_Tube unknown_Tube
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 130; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 610 [tous courants] - Lemouzy; Paris
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 560 x 350 x 280 mm / 22 x 13.8 x 11 inch
- Notes
-

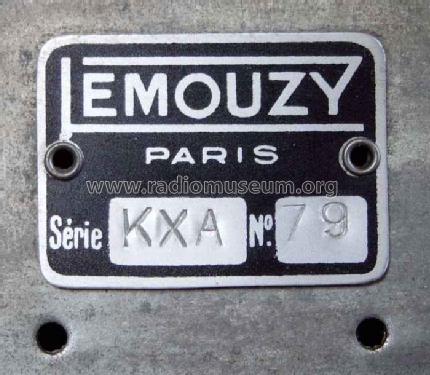

Le type du modèle ne peut être vu sur la carton arrière. Sur le châssis, seulement un numéro de série est indiqué.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
- Other Models
-
Here you find 221 models, 172 with images and 51 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
