624
Lemouzy; Paris
- Country
- France
- Manufacturer / Brand
- Lemouzy; Paris
- Year
- 1953/1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 107813
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org

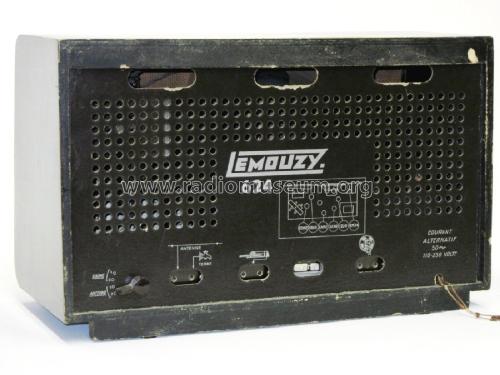

- Model: 624 - Lemouzy; Paris
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 475 x 310 x 230 mm / 18.7 x 12.2 x 9.1 inch
- Notes
-
4 gammes d'ondes dont 1 bande étalée (BE). Cadre orientable mixte, à air et ferrite. Étage HF. Commutateur pour fonctionnement sur antenne. Prises pour pick-up et HP supplémentaire.
Ébénisterie façon macassar ou noyer verni.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Price in first year of sale
- 31,950.00 FRF
- Mentioned in
- -- Original prospect or advert (Catalogue Mai 1954)
- Author
- Model page created by John Koster. See "Data change" for further contributors.
