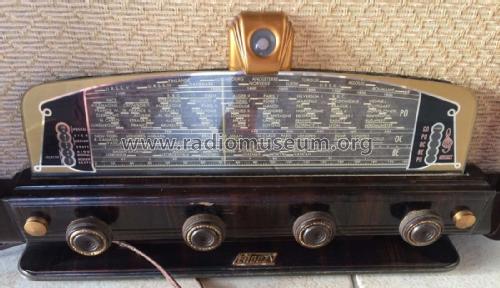

913
Lemouzy; Paris
- Country
- France
- Manufacturer / Brand
- Lemouzy; Paris
- Year
- 1952–1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 107824
leboncoin.fr #1581834675 seller resterboer
leboncoin.fr #1581834675 seller resterboer
From an original catalogue
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- 2 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 913 - Lemouzy; Paris
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 590 x 370 x 270 mm / 23.2 x 14.6 x 10.6 inch
- Notes
-
4 gammes d'ondes dont 1 bande étalée. Étage HF, sortie BF en push-pull. Sélectivité réglable 5 / 10 kc, tonalité réglable a 10 positions. Cadre blindé incorporé. Double-diffuseur.
Ébénisterie noyer verni, façon macassar ou palissandre.
Livraison à partir du décembre 1952. Supplément pour version 25 périodes. Prix en Mai 1954.
- Net weight (2.2 lb = 1 kg)
- 14 kg / 30 lb 13.4 oz (30.837 lb)
- Price in first year of sale
- 67,950.00 FRF
- Mentioned in
- -- Original prospect or advert (Nov. 1952, Mai 1954)
- Literature/Schematics (1)
- Toute la radio (No. 186, Juin 1954)
- Author
- Model page created by John Koster. See "Data change" for further contributors.
