F505
Lemouzy; Paris
- Country
- France
- Manufacturer / Brand
- Lemouzy; Paris
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 63069

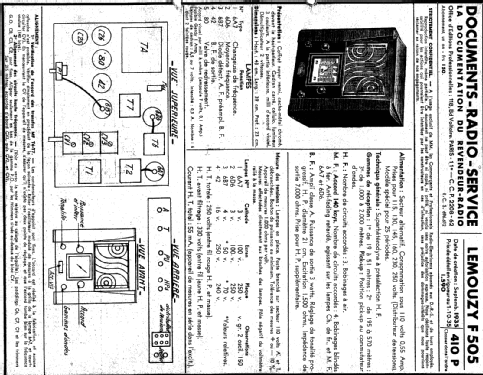

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 140 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC) / 115; 130; 145; 160; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

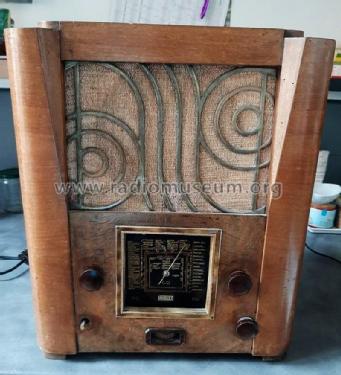

- Model: F505 - Lemouzy; Paris
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 390 x 430 x 230 mm / 15.4 x 16.9 x 9.1 inch
- Notes
-
3 gammes d'ondes: PO 200 à 600 m, GO 1000 à 2000 m, OC 19 à 51 m. Antifading, contrôle visuel de réglage (milli). Cadran à 3 allumages de couleurs differentes, démultiplicateur 2 vitesses. Prise pick-up.
Coffret en noyer verni, cache-métal chromé.
Lampes cadran: 6 x 6,5 V / 0,3 A.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 1,590.00 FRF
