• Country
• France

• Manufacturer / Brand
• Lemouzy; Paris

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62715

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8 6K7 6H6 6J7 6F6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 24 cm = 9.4 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

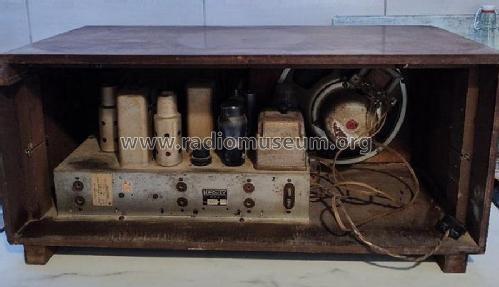

• Model: IV6 - Lemouzy; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 670 x 320 x 310 mm / 26.4 x 12.6 x 12.2 inch

• Notes
• Lamps: Dial 2x 7V/0,3A; Ranges of waves 4x 7V/0,1A; Visual tunning 7V/0,1A

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 2,650.00 FRF

• External source of data
• Serge Laffont/Martin Renoth
