• Country
• France

• Manufacturer / Brand
• Lemouzy; Paris

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62684

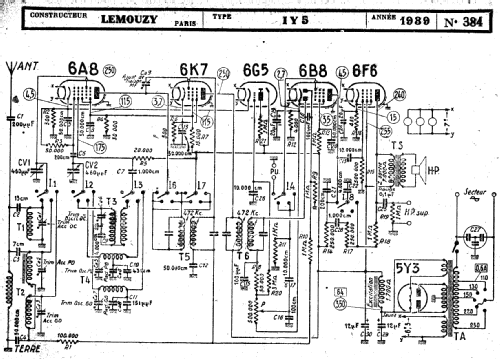

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8 6K7 6B8 6F6 6G5 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

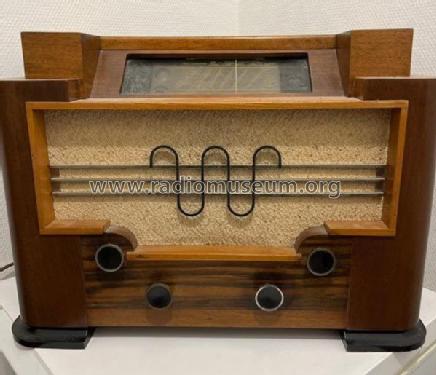

• Model: IY5 - Lemouzy; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 570 x 400 x 300 mm / 22.4 x 15.7 x 11.8 inch

• Notes

• Antifading. Contre-réaction BF. Sélectivite et tonalité réglables sur 4 positions. Lampes cadran : 3 x 7 V / 0.3 A.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 2,350.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Schémathèque Toute la Radio (STR) (No. 384)

• Literature/Schematics (1)
• -- Original prospect or advert (Juin 1938, Modèles 1938 - 1939)
