• Country
• France

• Manufacturer / Brand
• Lemouzy; Paris

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62685

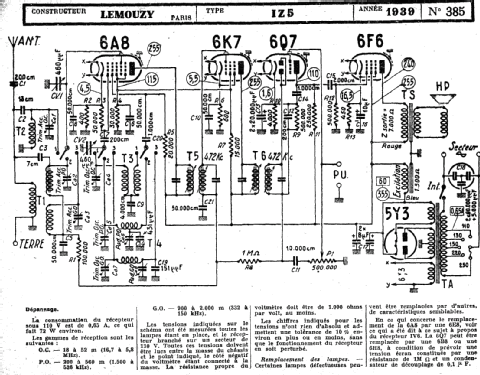

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6F6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch

• Power out
• 2.6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: IZ5 - Lemouzy; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 510 x 310 x 230 mm / 20.1 x 12.2 x 9.1 inch

• Notes

• Dial lamp: 2x 7V/0,3A

  Même modèle pour tous courants: 1730 FRF,  supplément pour 25 périodes: 35 FRF.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Price in first year of sale
• 1,895.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Le grand livre de la TSF (N° fiche = 1166)

• Literature/Schematics (1)
• -- Original prospect or advert (Advert, Juin 1938, Modèles 1938 - 1939)
