• Country
• France

• Manufacturer / Brand
• Lemouzy; Paris

• Year
• 1923–1925

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68927

• Number of Tubes
• 5

• Valves / Tubes
• TM TM TM TM TM

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s); Reaction

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 4 & 80 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• TUBES VISIBLE, material not known.

• from Radiomuseum.org
• Model: Transatlantique - Lemouzy; Paris

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 455 x 310 x 250 mm / 17.9 x 12.2 x 9.8 inch

• Notes

• 180-1400 m. 2 HF, 1 detector, 2 LF. Can be operated on 3, 4 or 5 valves.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Price in first year of sale
• 1,280.00 FF

• External source of data
• Reinhard Bittner

• Source of data

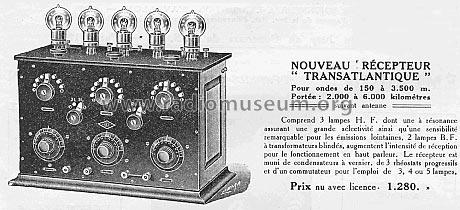

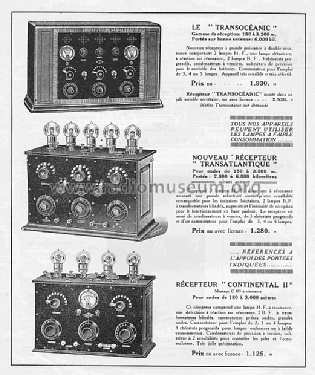

• -- Original prospect or advert

• Mentioned in
• Le grand livre de la TSF

• Literature/Schematics (2)
• Le Guide du Collectionneur TSF Biraud/Foster, Vol. I (page 211)
