- Country
- France
- Manufacturer / Brand
- Le Régional; Neuilly-sur-Seine
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 238601
Dépliant non datée
ebay.fr #191594460046 seller ericc0_
www.leboncoin.fr/collection/2363971935.htm
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org

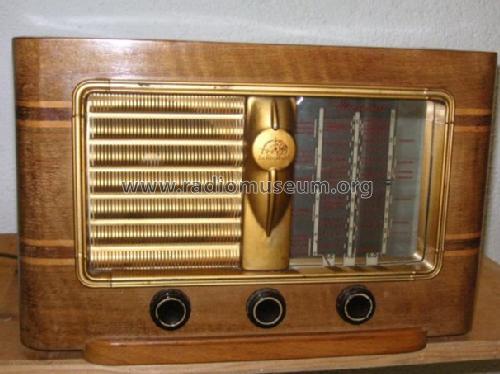

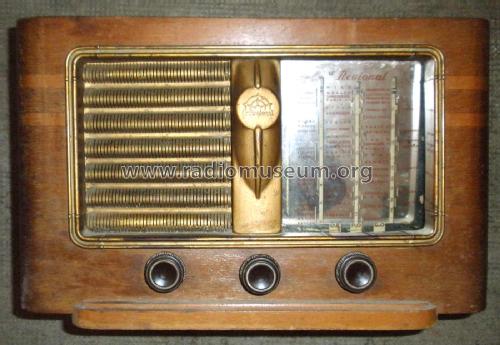

- Model: 51R - Le Régional; Neuilly-sur-Seine
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 400 x 250 x 180 mm / 15.7 x 9.8 x 7.1 inch
- Notes
-
4 gammes d'ondes: OC 18 à 50 m, PO 187 à 578 m, GO 1000 à 2000 m. Contre-reaction. Prise pick-up. Cadran miroir.
Alimentation secteur de 50 à 60 périodes.
Ébénisterie ronce de noyer, cadre or, tissu métallique.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Le grand livre de la TSF (Doctsf Ref 25237)
- Other Models
-
Here you find 60 models, 53 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
