• Country
• France

• Manufacturer / Brand
• Le Régional; Neuilly-sur-Seine

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 231361

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EAF42 EL41 EZ80 EM4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

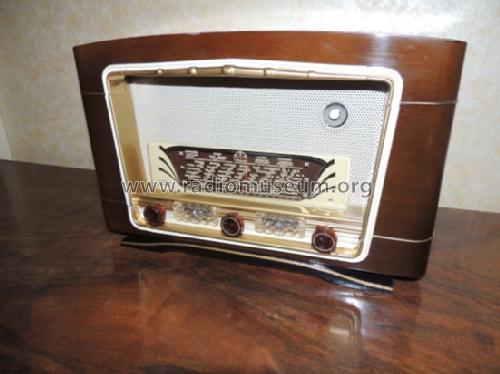

• Model: 54F - Le Régional; Neuilly-sur-Seine

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 370 x 215 x 160 mm / 14.6 x 8.5 x 6.3 inch

• Notes

• Encadrement or et crème avec deux motifs lumineux.

  Supplément pour 25 périodes: 350 F.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 14,500.00 FRF

• Mentioned in
• - - Manufacturers Literature (Tarif Confidentiel 1954)

• Literature/Schematics (1)
• Le grand livre de la TSF (Doctsf Ref 7938 (1953))

• Author
• Model page created by Eddy Rischmann. See "Data change" for further contributors.

• Other Models

• Here you find 60 models, 53 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Le Régional; Neuilly-sur-Seine
