• Country
• France

• Manufacturer / Brand
• LGM (L.G.M.), Le Guyader Morlaix, Éts. Elgem; Morlaix

• Year
• 1939 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 353252

• Number of Tubes
• 7

• Valves / Tubes
• EF6 ECH3 EF5 EBF2 EM1 EL3 1883

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

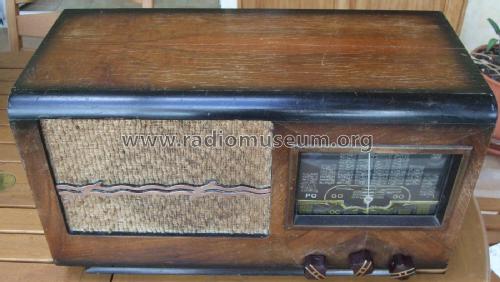

• Model: D100 - LGM L.G.M., Le Guyader Morlaix

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 568 x 315 x 265 mm / 22.4 x 12.4 x 10.4 inch

• Author
• Model page created by Pierre Rouaud. See "Data change" for further contributors.

• Other Models

• Here you find 37 models, 37 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from LGM (L.G.M.), Le Guyader Morlaix, Éts. Elgem; Morlaix
