- Country
- France
- Manufacturer / Brand
- LMT (L.M.T.), Le Matériel Téléphonique, Radiojour; Paris, Boulogne-Billancourt
- Year
- 1935 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 129607
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 135 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Line (AC, UC or DC not known) / 110; 125; 140 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21.5 cm = 8.5 inch
- Material
- Wooden case
- from Radiomuseum.org

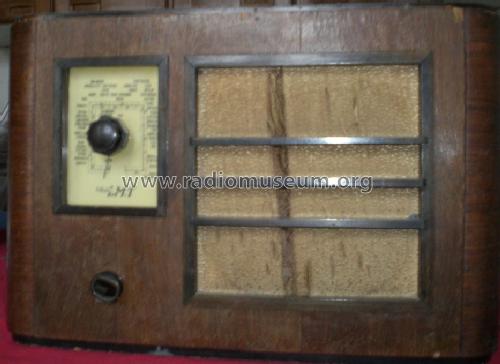

- Model: 244 - LMT L.M.T., Le Matériel
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 420 x 280 x 230 mm / 16.5 x 11 x 9.1 inch
- Notes
- Ce modéle est indentique au modèle "540", mais boutons différent. Le schéma semble indentique au modèle "43" (j'ai restauré ce poste avec ce schéma(résistance chutrice/condos de filtrage/redresseuse et lampe amplificatrice HS). Une lampe différente ("6b7" -> "75").
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Roger Bertin. See "Data change" for further contributors.
