• Country
• France

• Manufacturer / Brand
• LMT (L.M.T.), Le Matériel Téléphonique, Radiojour; Paris, Boulogne-Billancourt

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68573

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6B7 43 25Z5 6D6

• Main principle
• Superheterodyne (common); ZF/IF 135 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-150 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

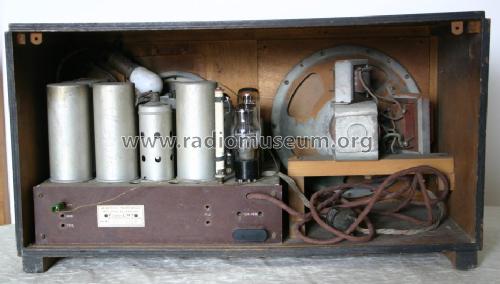

• Model: 43 - LMT L.M.T., Le Matériel

• Shape
• Tablemodel, low profile (big size).

• Price in first year of sale
• 1,290.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Schémathèque Toute la Radio (STR) (No. 194)

• Literature/Schematics (1)
• -- Original prospect or advert (L'Est Républicain, 24.11.1934)
