• Country
• France

• Manufacturer / Brand
• LMT (L.M.T.), Le Matériel Téléphonique, Radiojour; Paris, Boulogne-Billancourt

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62652

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• E455 E452T E445 E424 E453 E424 unknown_Tube

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 105; 110; 120; 130; 140; 160; 210; 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 6+1 - LMT L.M.T., Le Matériel

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• Récepteur pour ondes de 20 à 2000 m. Un seul bouton de réglage. Contrôle de volume automatique. Faculté de laisser le pick-up branché pendant l'audition de radio.

• Price in first year of sale
• 3,450.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Le grand livre de la TSF (Doctsf Ref 1240)

• Literature/Schematics (2)

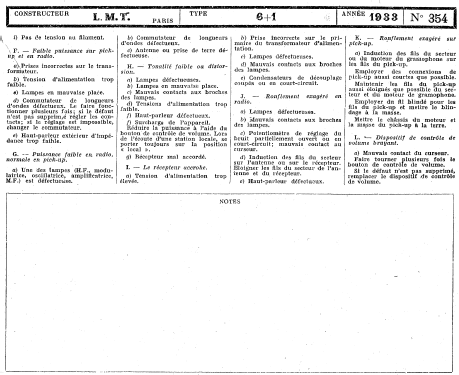

• Schémathèque Toute la Radio (STR) (No. 354)

• Other Models

• Here you find 176 models, 148 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from LMT (L.M.T.), Le Matériel Téléphonique, Radiojour; Paris, Boulogne-Billancourt
