- Country
- France
- Manufacturer / Brand
- LMT (L.M.T.), Le Matériel Téléphonique, Radiojour; Paris, Boulogne-Billancourt
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62615

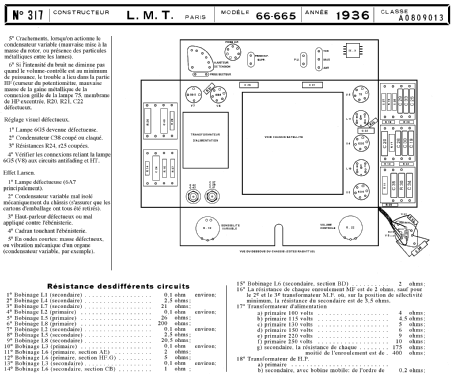

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 115; 130; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 28 cm = 11 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 66 - LMT L.M.T., Le Matériel
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 510 x 630 x 410 mm / 20.1 x 24.8 x 16.1 inch
- Notes
- Dial-lamps: 7x 6,3V/0,3A
- Net weight (2.2 lb = 1 kg)
- 29 kg / 63 lb 14 oz (63.877 lb)
- Price in first year of sale
- 3,400.00 FFR
- External source of data
- Serge Laffont/Martin Renoth
