- Country
- France
- Manufacturer / Brand
- LMT (L.M.T.), Le Matériel Téléphonique, Radiojour; Paris, Boulogne-Billancourt
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 244450
by courtesy of Mr JGB - Angoulème-France
Memo 1935-1936
Memo 1935-1936
by courtesy of Mr JGB - Angoulème-France
by courtesy of Mr JGB - Angoulème-France
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 135 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (not changer); Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiophono 541 - LMT L.M.T., Le Matériel
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 430 x 550 x 380 mm / 16.9 x 21.7 x 15 inch
- Notes
-

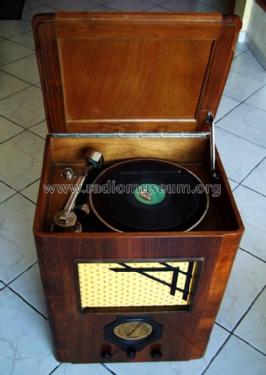

Radio-phono combiné comportant le châssis 54, un tourne-disque électrique et un pick-up.
2 gammes d'ondes : PO de 195 à 550 m et GO de 1000 à 2000 m. Anti-fading. Contrôle de tonalité. Réglage visuel par ombrographe. Prise pick-up. Cadran discoïdal en noms de stations.
Ébénisterie noyer.
Alimentation secteur alternatif 50 périodes, modèle 5415 pour 25 périodes.
- Price in first year of sale
- 2,200.00 FRF
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- - - Manufacturers Literature (Memo 1935-1936)
