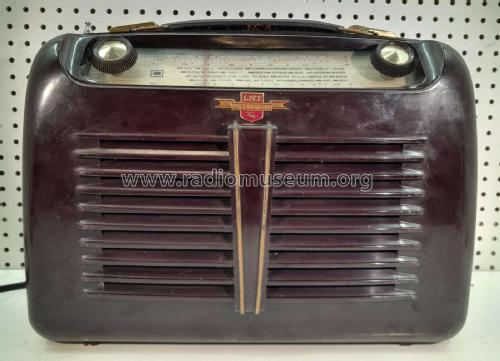

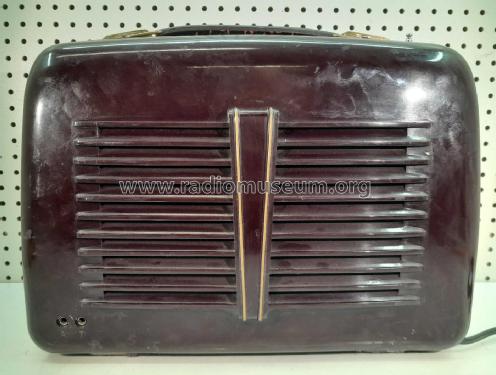

Week-End (Weekend) II
LMT (L.M.T.), Le Matériel Téléphonique, Radiojour; Paris, Boulogne-Billancourt
- Country
- France
- Manufacturer / Brand
- LMT (L.M.T.), Le Matériel Téléphonique, Radiojour; Paris, Boulogne-Billancourt
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 353629
Lautsprecher nicht original

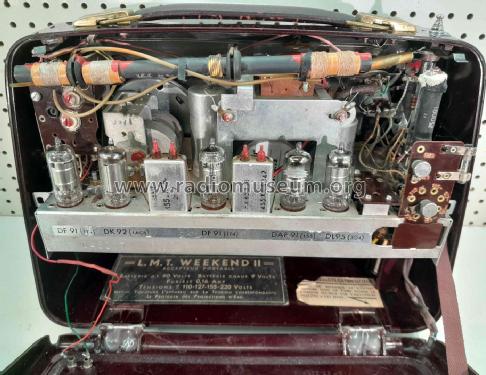

- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Line / Batteries (any type) / AC/DC 110; 127; 155; 220 / 9 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.3 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Week-End II - LMT L.M.T., Le Matériel
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 310 x 230 x 160 mm / 12.2 x 9.1 x 6.3 inch
- Notes
-
Ovallautsprecher 12 x 14 cm
Siehe auch LMT Weekend mit nur einem KW-Bereich.
In Gestaltung und Technik angelehnt an Lorenz Weekend 53 (L-M-K, 1953)
- Net weight (2.2 lb = 1 kg)
- 3 kg / 6 lb 9.7 oz (6.608 lb)
- Author
- Model page created by Dieter Schulte-Kulkmann. See "Data change" for further contributors.
