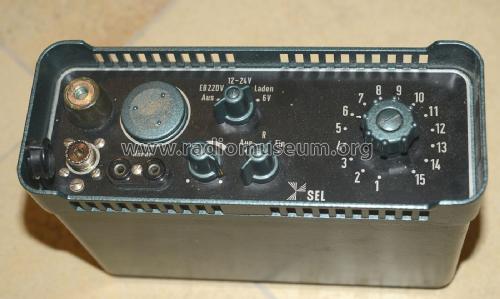

8m-Empfänger E33-40
Lorenz; Berlin, Zuffenhausen u.a.
- Country
- Germany
- Manufacturer / Brand
- Lorenz; Berlin, Zuffenhausen u.a.
- Year
- 1964 ??
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 328112
-
- Brand: SEL
Typenschild
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 220 / 6; 12-24 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 cm = 1.4 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: 8m-Empfänger E33-40 - Lorenz; Berlin, Zuffenhausen u
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 250 x 90 x 200 mm / 9.8 x 3.5 x 7.9 inch
- Notes
-
Seltener Empfänger für das nicht umgesetzte Projekt eines 8m Funknetzes für den Katastrophenschutz in der Bundesrepublik Deutschland.
15 Empfangskanäle im 8m-Band, jeweils mit einem Quarz bestückt.
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- Author
- Model page created by Michael Wagner. See "Data change" for further contributors.
