Tempelhof II B17

• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3152

• • Brand: SEL

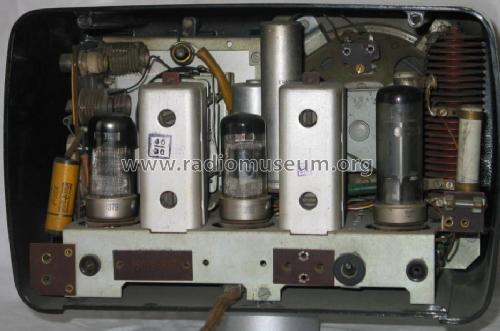

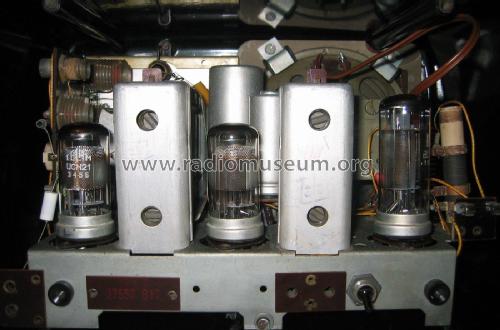

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• UCH21 UCH21 UBL21

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Tempelhof II B17 - Lorenz; Berlin, Zuffenhausen u

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 290 x 180 x 170 mm / 11.4 x 7.1 x 6.7 inch

• Notes
• (1B17-501)

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• Price in first year of sale
• 258.00 DM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Funkgeschichte der GFGF (9503)
