- Country
- France
- Manufacturer / Brand
- Radio Delta (Delia), Losange et Delta; Paris
- Year
- 1925
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 72527
Name Plate
- Number of Tubes
- 3
- Valves / Tubes
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: A-8 - Radio Delta Delia, Losange et
- Shape
- Tablemodel, slant panel.
- Notes

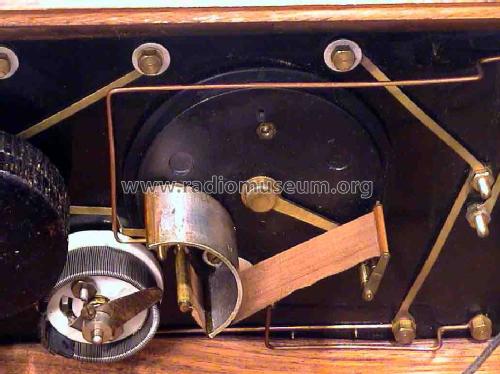

- This model was described in "Funkgeschichte" Number 99, page 282. It has 3 quite seldom seen early techniques to show: The type of tuning capacitor, the modular build and the technique for the wiring: riveted bands instead of wires. Three such specialities in one set is outstanding.
- External source of data
- Sammlung E. Erb
| Senderwahl mit ungewöhnlichem Prinzip "Spirex" J. Lagarrigue, France. | 344 KB |
- Documents regarding this model
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
