- Country
- Sweden
- Manufacturer / Brand
- Luma Elektronik AB , Lumalampan AB ; Stockholm
- Year
- 1970
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 232685
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Number of Transistors
- 29
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line / Batteries (any type) / 220/ 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 0.7 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

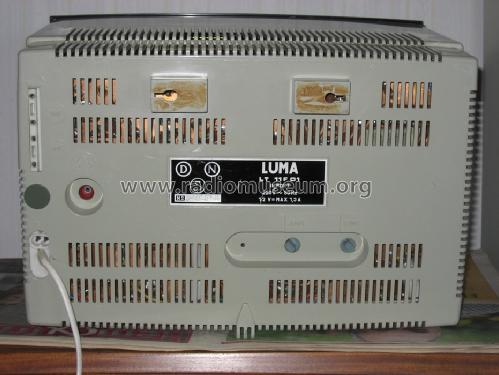

- Model: LT11F01 - Luma Elektronik AB ,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 395 x 260 x 286 mm / 15.6 x 10.2 x 11.3 inch
- Notes
-
VHF channels 2-12, UHF channels 21-68
Manufactured in Hungary by Videoton, branded and sold in Sweden by Luma.
Apparently equivalent to Minivizor TT-695 but intended for the CCIR B, G system instead of OIRT.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Author
- Model page created by Torbjörn Forsman. See "Data change" for further contributors.
- Other Models
-
Here you find 9 models, 9 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Luma Elektronik AB , Lumalampan AB ; Stockholm
