• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73808

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

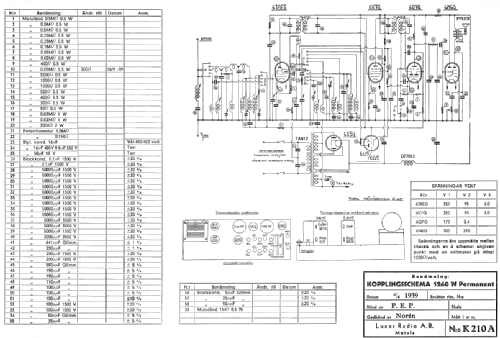

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6J8EG 6K7G 6Q7G 6N6G 6U5 or 6G5 6X5G

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1260W - Luxor Radio AB; Motala

• Shape
• Tablemodel, with any shape - general.

• Notes
• AC Voltage selector positions: 100; 110; 125; 135; 145; 160; 200; 210; 225; 235; 245; 260V

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Author
• Model page created by Klaus Ortwein. See "Data change" for further contributors.
