1265WL
Luxor Radio AB; Motala
- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 275986
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 490 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1265WL - Luxor Radio AB; Motala
- Shape

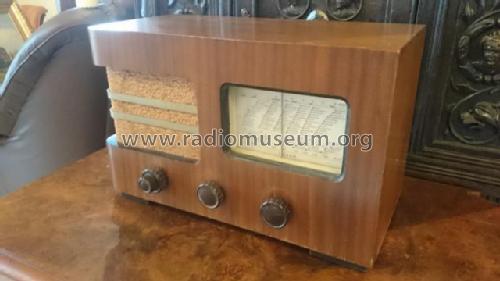

- Tablemodel, low profile (big size).
- Literature/Schematics (1)
- - - Manufacturers Literature (Schematic dated 25/5 1939)
- Author
- Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
