• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 252368

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 7B7 35A5E 35Z3

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110-250 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

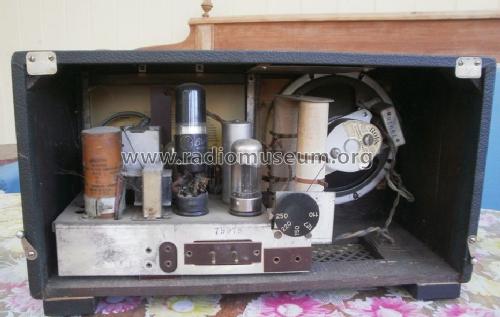

• Model: 1410 WL - Luxor Radio AB; Motala

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 230 x 180 mm / 15.7 x 9.1 x 7.1 inch

• Net weight (2.2 lb = 1 kg)
• 5.4 kg / 11 lb 14.3 oz (11.894 lb)

• Literature/Schematics (1)
• -- Original-techn. papers. (Schematic dated 5/1 1940)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
