1565W
Luxor Radio AB; Motala
- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1942 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 170669
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

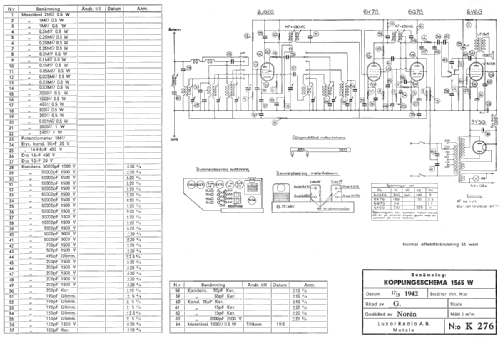

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 490 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

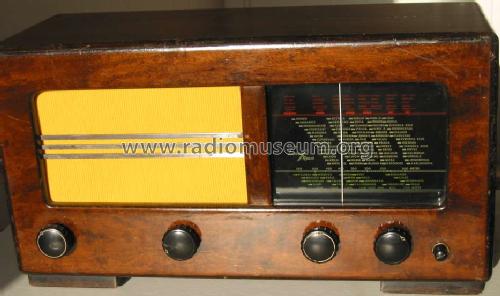

- Model: 1565W - Luxor Radio AB; Motala
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 495 x 265 x 190 mm / 19.5 x 10.4 x 7.5 inch
- Net weight (2.2 lb = 1 kg)
- 10.7 kg / 23 lb 9.1 oz (23.568 lb)
- Literature/Schematics (1)
- -- Original-techn. papers. (Schematic dated 17/3 1942)
- Author
- Model page created by Kazimierz Jarosz. See "Data change" for further contributors.
- Other Models
-
Here you find 406 models, 314 with images and 147 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Luxor Radio AB; Motala
