• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1942/1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18195

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

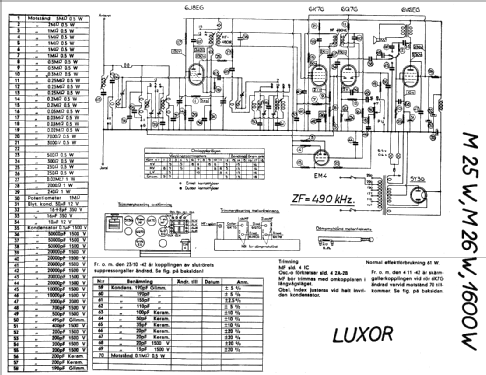

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6J8EG 6K7G 6Q7G 6V6EG EM4 5Y3G

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20.5 cm = 8.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1600W - Luxor Radio AB; Motala

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 305 x 255 mm / 21.7 x 12 x 10 inch

• Notes
• 6J8EG OR ECH35

• Price in first year of sale
• 545.00 SFR

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Other Models

• Here you find 402 models, 310 with images and 142 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Luxor Radio AB; Motala
