• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1933 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 225487

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

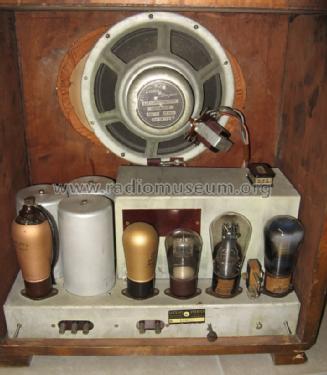

• RENS1264 or E452T REN904 or E424 REN904 or E424 RENS1374d RGN1054 or 506

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 90 - 265 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material

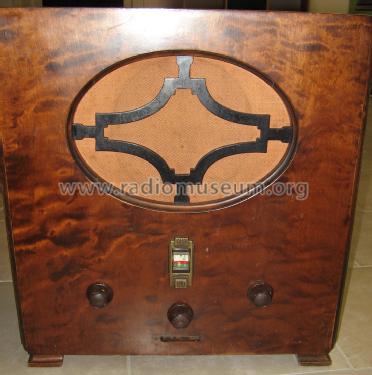

• Wooden case

• from Radiomuseum.org
• Model: 234DW - Luxor Radio AB; Motala

• Shape

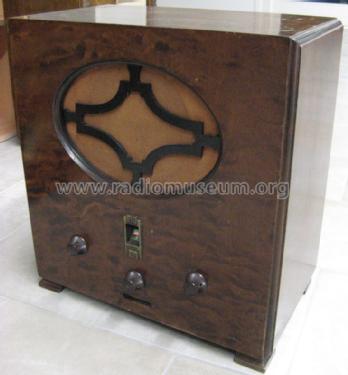

• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Author
• Model page created by Mauro Ruzzante. See "Data change" for further contributors.
