23DWa
Luxor Radio AB; Motala
- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1933 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 239393
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 90;105; 120; 130; 145; 160; 195; 210; 225; 235; 250; 265 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22.5 cm = 8.9 inch
- Material
- Wooden case
- from Radiomuseum.org

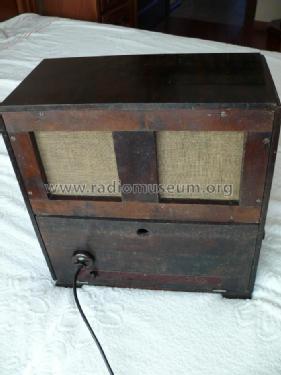

- Model: 23DWa - Luxor Radio AB; Motala
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 400 x 420 x 230 mm / 15.7 x 16.5 x 9.1 inch
- Author
- Model page created by Alex Kulachenkov. See "Data change" for further contributors.
