- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1935 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 314442
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)
- Number of Tubes
- 5
- Main principle
- TRF with diode detector
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 & 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org

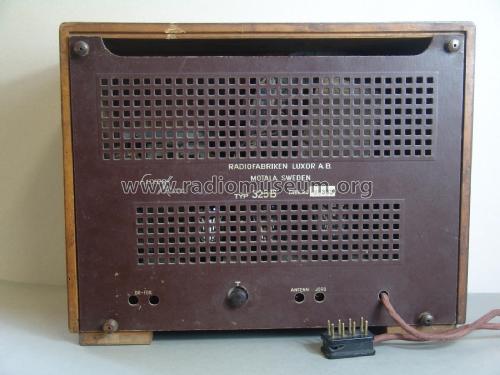

- Model: 325B - Luxor Radio AB; Motala
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 395 x 320 x 220 mm / 15.6 x 12.6 x 8.7 inch
- Notes
-
Lautstärke und Klang mit Drehkondensatoren geregelt vgl. Modell 725DW
Gleiches Gehäuse mit Schaltung als Netzgerät: 825WL
- Author
- Model page created by Wilhelm Siepe. See "Data change" for further contributors.
