• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1931 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 109744

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

• Number of Tubes
• 5

• Valves / Tubes
• RENS1204 or E442S REN1004 or E438 REN1004 or E438 RES364 or C443 RGN1054 or 506

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 105; 115; 125; 135; 150; 210; 220; 230; 240; 250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

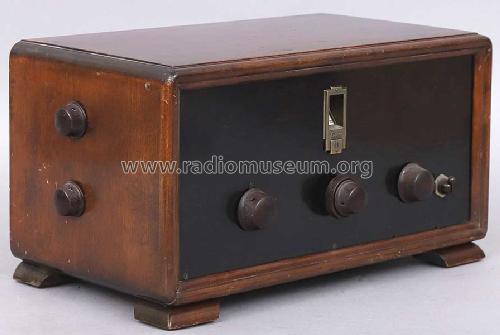

• Model: 4W [square dial window] - Luxor Radio AB; Motala

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 430 x 230 x 230 mm / 16.9 x 9.1 x 9.1 inch

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Mentioned in
• - - Data from my own collection

• Other Models

• Here you find 403 models, 312 with images and 145 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
