• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1933 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 225470

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

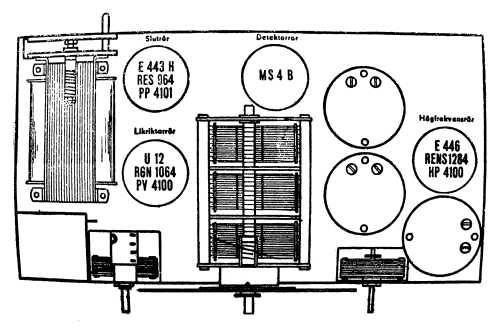

• E443H or RES964 or PP4101 U12 or RGN1064 or PV4100 MS4B E446 or RENS1284 or HP4100

• Main principle
• Superheterodyne (common)

• Power type and voltage
• Alternating Current supply (AC) / 100-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

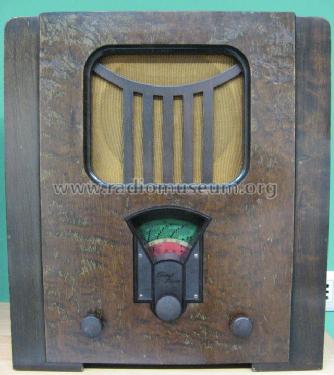

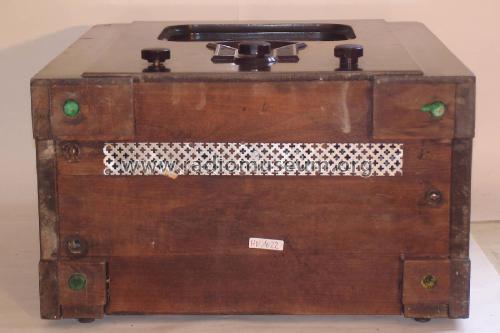

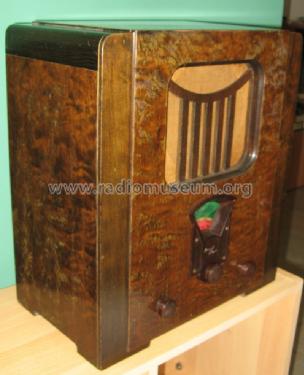

• Model: 633DW - Luxor Radio AB; Motala

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 392 x 442 x 226 mm / 15.4 x 17.4 x 8.9 inch

• Net weight (2.2 lb = 1 kg)
• 15.3 kg / 33 lb 11.2 oz (33.7 lb)

• Author
• Model page created by Mauro Ruzzante. See "Data change" for further contributors.

• Other Models

• Here you find 403 models, 312 with images and 145 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
