• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 278685

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

• Number of Tubes
• 6

• Valves / Tubes
• 8M9GM 7H7 6Q7G 25L6G 6U5 25Z6G

• Main principle
• Superheterodyne (common); ZF/IF 490 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 125; 135; 150; 190; 220; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

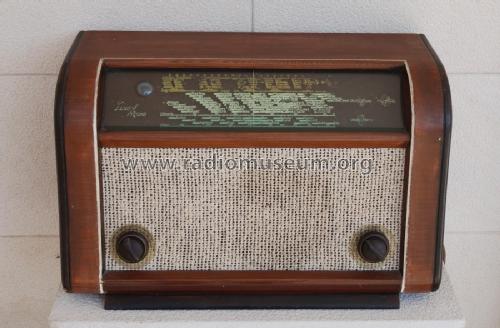

• Model: 64L - Luxor Radio AB; Motala

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 340 x 260 mm / 21.7 x 13.4 x 10.2 inch

• Notes

• See also Luxor 64W.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
