• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1945/1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18203

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6J9SG 6K7G 6Q7G 6V6G 5Y3G

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org

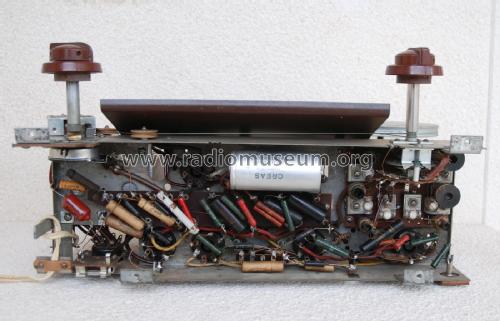

• Model: 72W - Luxor Radio AB; Motala

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 280 x 190 mm / 16.5 x 11 x 7.5 inch

• Net weight (2.2 lb = 1 kg)
• 7.9 kg / 17 lb 6.4 oz (17.401 lb)

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.
