- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 313359
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

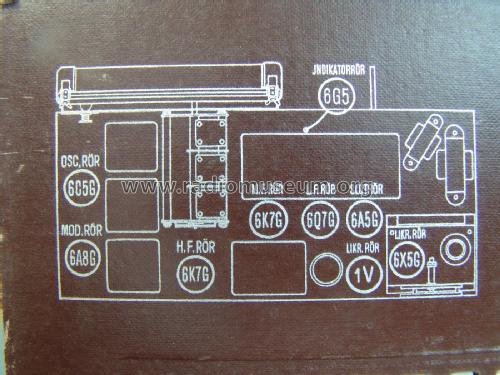

- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 100; 110; 125; 135; 145; 160; 200; 210; 225; 235; 245; 260 Volt

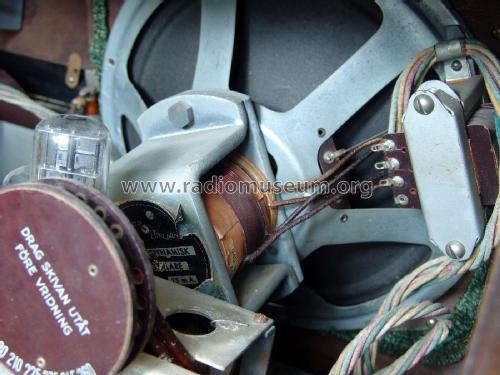

- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 26 cm = 10.2 inch
- Material
- Wooden case
- from Radiomuseum.org

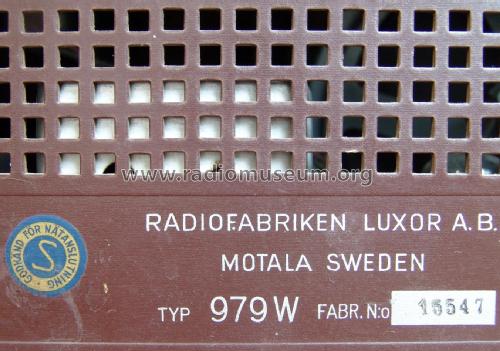

- Model: 979W - Luxor Radio AB; Motala
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 575 x 370 x 275 mm / 22.6 x 14.6 x 10.8 inch
- Notes
-
Anschlüsse für Tonabnehmer und Zweitlautsprecher.
Siehe auch das Allstrom-Modell Luxor 1179WL
- Net weight (2.2 lb = 1 kg)
- 20 kg / 44 lb 0.8 oz (44.053 lb)
- Author
- Model page created by Wilhelm Siepe. See "Data change" for further contributors.
