• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1929 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 146831

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

• Number of Tubes
• 3

• Valves / Tubes
• A425 A425 B405

• Main principle
• TRF with regeneration

• Power type and voltage
• Storage and/or dry batteries / 4 & 70 & 120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

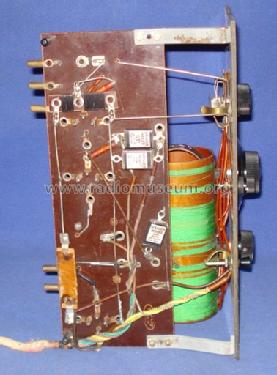

• Model: A30 / S30 [1] - Luxor Radio AB; Motala

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 330 x 185 x 195 mm / 13 x 7.3 x 7.7 inch

• Notes
• This is type 1 of this A30 / S30.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Torbjörn Hansson. See "Data change" for further contributors.
