A30 / S30 [3]
Luxor Radio AB; Motala
- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1930 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 228428
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

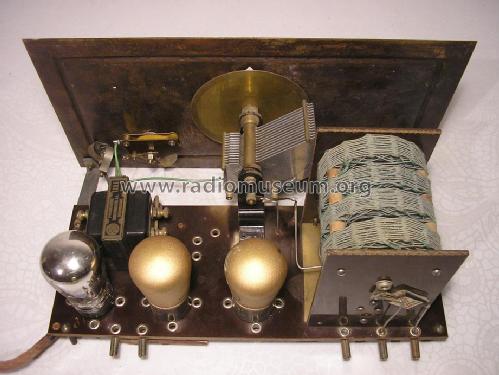

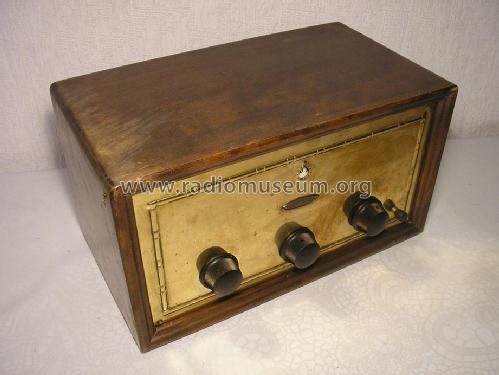

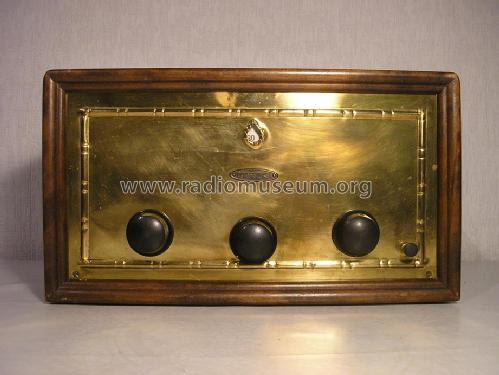

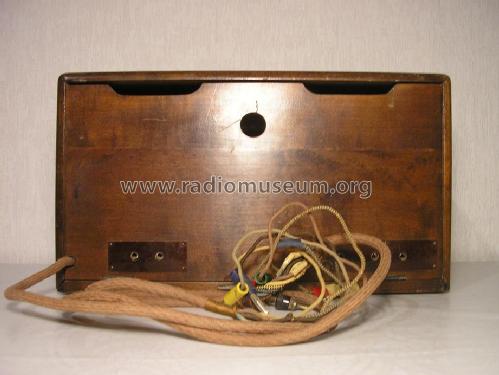

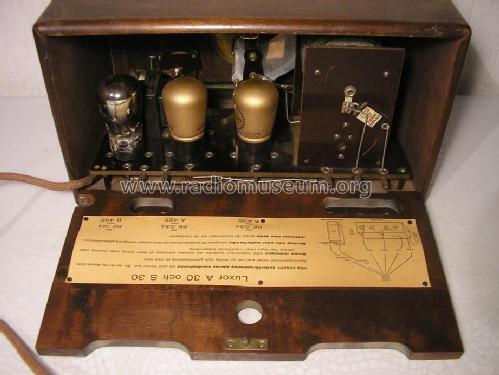

![A30 / S30 [3]; Luxor Radio AB; (ID = 1358800) Radio](/images/radio/luxor_radio_ab/a30_s30_3_1358800.jpg)
![A30 / S30 [3]; Luxor Radio AB; (ID = 1368144) Radio](/images/radio/luxor_radio_ab/a30_s30_3_1368144.jpg)
![A30 / S30 [3]; Luxor Radio AB; (ID = 1368145) Radio](/images/radio/luxor_radio_ab/a30_s30_3_1368145.jpg)
![A30 / S30 [3]; Luxor Radio AB; (ID = 1368146) Radio](/images/radio/luxor_radio_ab/a30_s30_3_1368146.jpg)
![A30 / S30 [3]; Luxor Radio AB; (ID = 1368147) Radio](/images/radio/luxor_radio_ab/a30_s30_3_1368147.jpg)
![A30 / S30 [3]; Luxor Radio AB; (ID = 1368148) Radio](/images/radio/luxor_radio_ab/a30_s30_3_1368148.jpg)
![A30 / S30 [3]; Luxor Radio AB; (ID = 1368149) Radio](/images/radio/luxor_radio_ab/a30_s30_3_1368149.jpg)
![A30 / S30 [3]; Luxor Radio AB; (ID = 1368151) Radio](/images/radio/luxor_radio_ab/a30_s30_3_1368151.jpg)
![A30 / S30 [3]; Luxor Radio AB; (ID = 1368153) Radio](/images/radio/luxor_radio_ab/a30_s30_3_1368153.jpg)
- Number of Tubes
- 3
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Power type and voltage
- Storage and/or dry batteries / 4 & 7-12 & 70 & 100-120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: A30 / S30 [3] - Luxor Radio AB; Motala
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 333 x 188 x 190 mm / 13.1 x 7.4 x 7.5 inch
- Author
- Model page created by Timo Rantasaari. See "Data change" for further contributors.
