• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1959 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 150582

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

• Number of Tubes
• 20

• Valves / Tubes

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

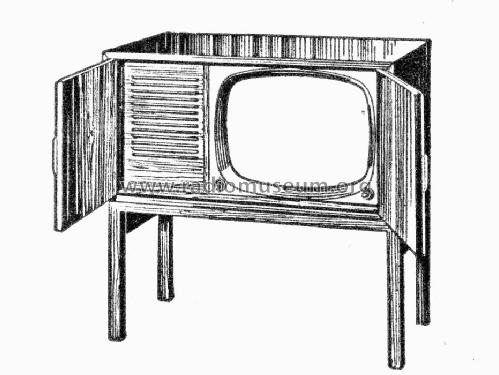

• Model: Arkad TV43251 - Luxor Radio AB; Motala

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 740 x 750 x 480 mm / 29.1 x 29.5 x 18.9 inch

• Notes
• 17" CRT. 7 Germanium diodes, 1 selenium rectifier, 9 channels. Cabinet made of Mahogany and Teak. Price is from 1959, weight is including box.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Price in first year of sale
• 1,395.00 SEK

• Mentioned in
• "Luxor-programmet No5/1959"

• Author
• Model page created by Jörgen Svensson. See "Data change" for further contributors.

• Other Models

• Here you find 403 models, 312 with images and 145 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
