Diplomat 399W
Luxor Radio AB; Motala
- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 247960
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)
Lokalsender Beromünster

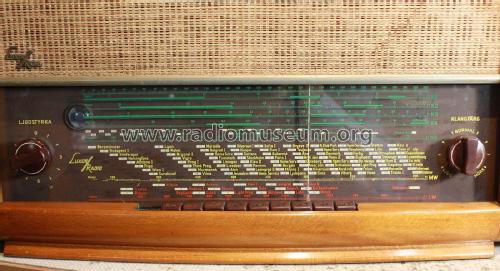

S_LUXOR_Diplomat 399W
S_LUXOR_Diplomat 399W_rear panel
S_LUXOR_Diplomat 399W_inside view
S_LUXOR_Diplomat 399W_local station circuit
S_LUXOR_Diplomat 399W_impressive dial
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 100; 110; 125; 135; 150; 190; 220; 250 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Diplomat 399W - Luxor Radio AB; Motala
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 625 x 385 x 295 mm / 24.6 x 15.2 x 11.6 inch
- Notes
-
zwei gleiche Lautsprecher, fünf KW-Bänder
- Net weight (2.2 lb = 1 kg)
- 19.5 kg / 42 lb 15.2 oz (42.952 lb)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
