• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1974 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 265952

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

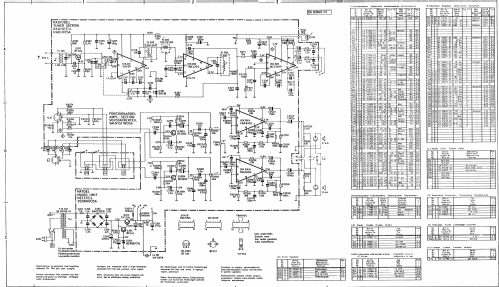

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BF324 BC239 BC239 BC141 TIP31 S042 TBA120 MC1310 TBA810 TBA810 BA138 BZX83 B40C2200 Diode_LED

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Details
• Record Player (not changer); Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

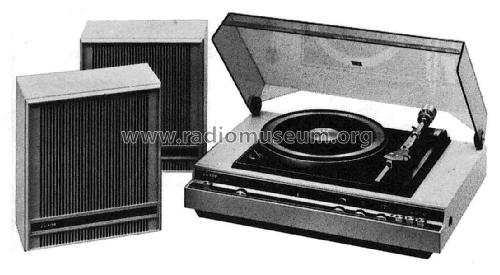

• Model: Dirigent 1000 150 05411 - Luxor Radio AB; Motala

• Shape
• Tablemodel, low profile (big size).

• Notes

• Same chassis as Skantic Harmoni 5S (150 05412).

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Jan-Ake Ahl. See "Data change" for further contributors.
