Disponent 19 PM
Luxor Radio AB; Motala
- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1951
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 115646
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Other Combination - see Notes
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 1.5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Disponent 19 PM - Luxor Radio AB; Motala
- Shape

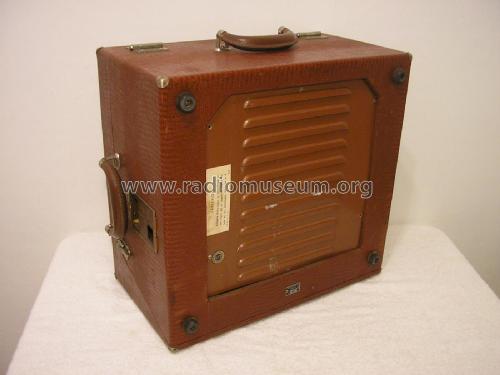

- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 450 x 430 x 260 mm / 17.7 x 16.9 x 10.2 inch
- Notes

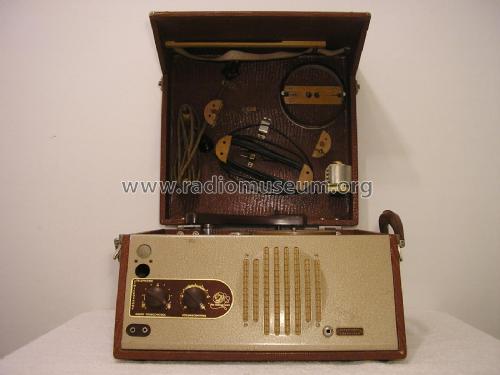

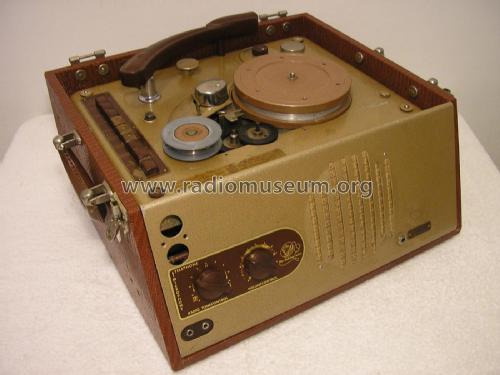

- Tondrahtgerät mit Plattenspieler und NF-Verstärker.
Plattenspieler: 78 UpM.
Drahtspieler: 35 und 60 cm/s. Mit austauschbarem Teller für eine max. Spielzeit von 4 Stunden.
Anschlussmöglichkeit für Radio, Telefon, Aussenlautsprecher, Zusatzverstärker. Die Tonqualität kann mit Kopfhörer kontrolliert werden.
- Net weight (2.2 lb = 1 kg)
- 25 kg / 55 lb 1.1 oz (55.066 lb)
- Price in first year of sale
- 975.00 DM
- Mentioned in
- -- Original prospect or advert
Operating instructions for Luxor Magnephone | 5798 KB |
- Documents regarding this model
- Author
- Model page created by a member from D. See "Data change" for further contributors.
- Other Models
-
Here you find 402 models, 310 with images and 142 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Luxor Radio AB; Motala
Collections
The model Disponent 19 PM is part of the collections of the following members.
Forum contributions about this model: Luxor Radio AB;: Disponent 19 PM
Threads: 1 | Posts: 1
The schematic previously added is for Samson PAM-19 ampifier.
I will add tube information as soon as I have opened by Disponent.
Anders Sandgren, 14.May.08
