• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 233967

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

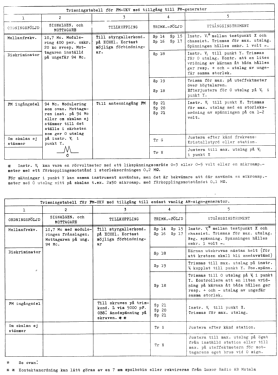

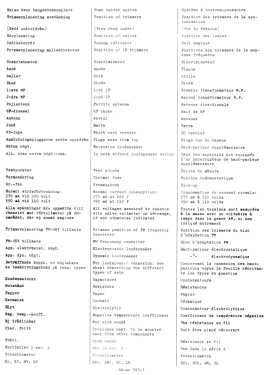

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EBF89 EF80 EM80 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 462/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 250 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

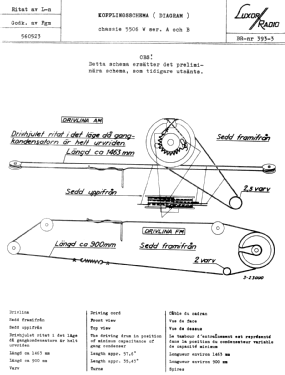

• Model: Premiär 3297W Ch= 5506W - Luxor Radio AB; Motala

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 530 x 340 x 245 mm / 20.9 x 13.4 x 9.6 inch

• Notes

• 1. From side of cabinet rotary ferrite antenna

  2. Bandsperad on SW via FM knob

  3. FM 87,5-108 Mhz

  4. Main loudspeaker elliptical 26x14 cm, 2 HF speakers at the sides 15x10 cm

  5. The schema is typical (not exact)



• Net weight (2.2 lb = 1 kg)
• 12.3 kg / 27 lb 1.5 oz (27.093 lb)

• Author
• Model page created by Ola Gröndalen. See "Data change" for further contributors.
