- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1951 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 207377
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 1,5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

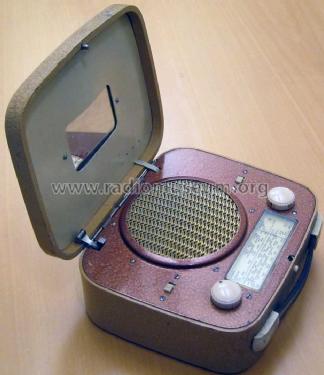

- Model: R10 - Luxor Radio AB; Motala
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 240 x 265 x 195 mm / 9.4 x 10.4 x 7.7 inch
- Notes
- The model R10 is similar to the later models R12 and R14. Jacks for extern speaker and antenna. We have taken the data from the R12 - until we get better information. But we received the names of the correct tubes for this Luxor model R10. By that it can't be older than from 1951 because of the DK92.
- Net weight (2.2 lb = 1 kg)
- 3 kg / 6 lb 9.7 oz (6.608 lb)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
