Romance BT-361 Import
Luxor Radio AB; Motala
- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1958 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 273173
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors present.
- Semiconductors
- OA172 OA172 OA79 unknown_tr
- Main principle
- Superheterodyne (common); ZF/IF 462/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 6 & 67.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

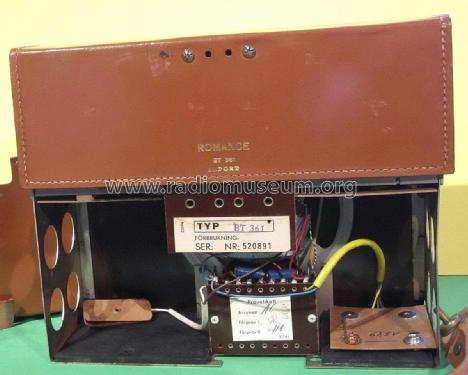

- Model: Romance BT-361 Import - Luxor Radio AB; Motala
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 270 x 220 x 105 mm / 10.6 x 8.7 x 4.1 inch
- Notes
-
Luxor Romance BT-391 is a hybrid receiver. The RF section has tubes, the AF amplifier uses transistors.
- Author
- Model page created by Daniel Rosha. See "Data change" for further contributors.
